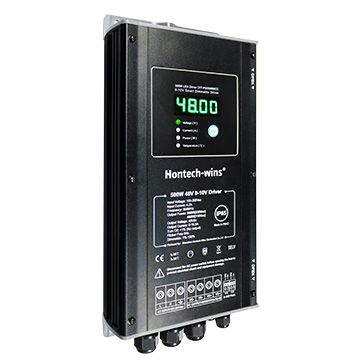

The Features of 500W 0-10V DC Dimmable LED Power Supply:
•Constant voltage 500W LED driver(Comply with Class I & Class II LED Lamps)
•Flicker free DC LED Dimmable Driver
•Universal AC input /full voltage range/5 Years Warranty（Tc≦80℃)
•IP67: the 500W LED driver can be used in a bad environment
•Advantage of the 500W dimmable LED driver : Active Power factor correction design, high efficiency and excellent performance
The 500W 0-10V DC Dimmable LED Power Supply also suits for T5/T6 LED Tube Light
The Hontech Wins 500W 0-10V DC dimmable power supply is a flicker free led dimmer for poultry lighting systems.

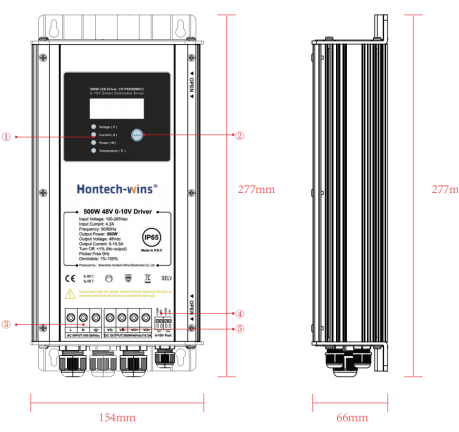

1. Power OK, Voltage(Press the button to choose Current, Power and Temperature)
2. AC Input Terminal of the 500W LED driver: Connecting L(Live wire) and N(Neutral Wire)
3. 0-10V signal connector: Connecting external 0-10V wire
4. AC output Terminal: Connecting with lights
(UNIT
220Vac @ 500W
120Vac @ 400W
4.2A
47-63Hz
35.5V-48.5V 0-10.5A
0-100%
>0.98
<10%
IP54
92% @230Vac
90% @115Vac
Over voltage
Short circuit
Over Temperature
-25℃-50℃
20-%-90% RH non-condensing
-35℃-80℃
CE CB, SAA
